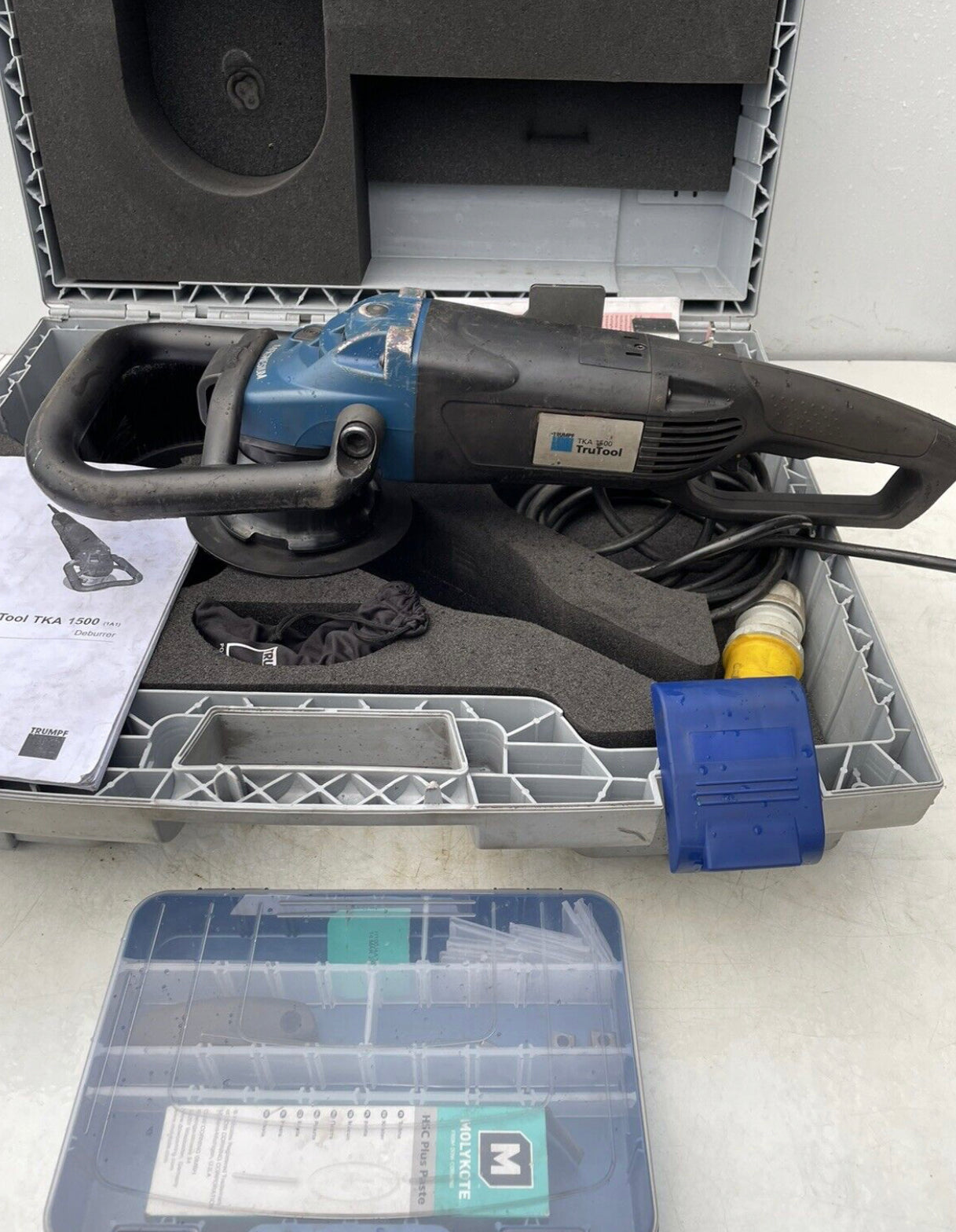

Used / Tested and found to be in working order those cost around £3500 new, a great bit of kit !! Postage will include insurance to the value of auction price in case of loss in transit .
The robust Trumpf TruTool TKA1500 45° Edge Trimmer reates precisely fitting chamfer lengths of up to 15 mm at angles of 30°, 45° and 60°. The chamfer length can be set as required and without the need for any tools. You can then achieve instant high-quality, repeatable edges without any reworking.
Features:
You can produce clean visible edges, break sharp edges, apply a radius, or prepare a weld seam. The efficient milling process is up to five times faster than competitor processes. Oxidation or deformation of the material is avoided.
With an ergonomic guide and motor handle, the machine is unrivalled in its ease of use.
Handle shape, size and positioning are perfectly designed to ensure ergonomic working.
Chamfer lengths can be set as required without needing any tools.
High-quality results with burr- and oxide-free surfaces, dust-free, without material change and at a constant angle adjustment.
For straight edges, inner and outer contours and holes larger than 80 mm.
Applications:
T-beam and flat sheet: for rounded edges with a radius of 2 mm, 3 mm or 4 mm. For deburring and welding seam preparation.
For inner and outer edges: for rounded edges with a radius of 2 mm, 3 mm or 4 mm. For deburring and welding seam preparation.
Specification:
Nominal power consumption: 2600W
Min. sheet thickness: 3 + hs mm
Working speed: 1 m/min – 1.5 m/min
Speed during idle run: 6700 1/min
Max. chamfer lengths steel: 400n/mm2: 15mm, 600n/mm2: 12mm, 800n/mm2: 10mm
Max. chamfer lengths aluminium: 250n/mm2: 15mm
Max. chamfer height steel: 400n/mm2: 10.6mm, 600n/mm2: 8.5mm, 800n/mm2: 7.1mm
Max. chamfer height aluminium: 250n/mm2: 10.6mm
Smallest inner radius: 30mm
Smallest bore hole Ø: 55mm
Weight: 10kg
